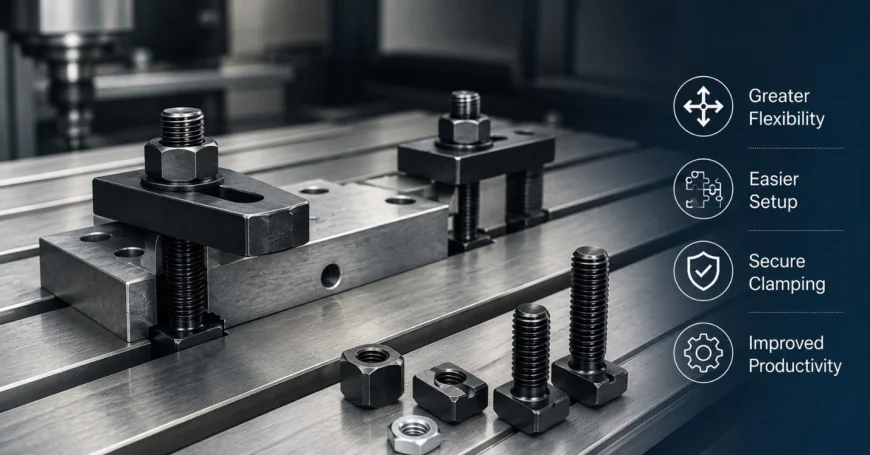

Choosing the Best T-Slot Bolts? Start With These 6 Specifications

Selecting a fastener for a machine table may appear straightforward until a bolt will not fit in the slot, the thread does not match, or the available length is not suitable for the fixture. Minor specification discrepancies can cause setup delays and affect the firmness of holding components in place. That is why selecting T-slot bolts should begin with details, not appearance or price.

The most expensive ones are not always the best T-slot bolts. They are the ones that match the machine table, fixture, load, and working conditions. Here are six specs to watch for before you make a choice.

1. T-Slot Dimensions

First, check the size and shape of the machine table slot. T-slot bolts are designed to fit certain slot sizes. The bolt head or T-shaped section should fit inside the channel properly.

If the match is poor, the fastener may not move smoothly or stay in good contact with the slot. Before ordering, measure the relevant slot dimensions or check the machine table manufacturer’s specifications.

2. Type and Size of Thread

Another thing that should never be overlooked is thread compatibility. The bolt has to be compatible with the matching nut or threaded element that is used in the configuration. Common applications may use metric or inch-based threads, and the difference is not interchangeable. Even if two threads are similar, they can be different in diameter and pitch.

Be sure to check the required diameter and pitch of the thread before purchase. Getting the spec right helps ensure proper engagement and makes assembly much easier.

3. Length of Bolts

Length determines the amount of threaded engagement remaining after the bolt passes through the fixture or clamping component. If a bolt is too short, it might not engage well. One that is unnecessarily long can interfere with other components or just make the setup less convenient.

Length is a function of the thickness of the fixture, washer, or clamping hardware, nut arrangement, and available space under the work-holding component. Just measure the whole assembly, not a length based on the bolt alone.

4. Material & Strength

The material used in the manufacture of a bolt impacts its strength, durability, and application suitability. Depending on the work being done, securing a machine table can involve repeated tightening, vibration, and significant clamping forces.

Make the choice of material or grade after evaluating the application. The requirements of a fastener for a light fixture might be different from those of a heavier industrial work-holding arrangement.

Also, think about the working environment. Some finishes or materials may be affected by exposure to moisture, chemicals, heat, or frequent handling.

5. Design of Head and Fastener

The T-slot bolt's shape is crucial because it dictates how the fastener will fit into the slot and the fixture. A properly designed head should fit snugly into the T-slot, allowing the threaded part to protrude through the object being attached. The geometry must fit the machine table and not just through the opening.

Look at the size of the bolt head and its overall shape. When you don't have much room to work with, head dimensions become especially important. This is a simple specification to overlook until installation

6. Application & Clamping Requirements

The end specification is less about one measurement and more about the job the bolt has to do. Take into account the type of fixture, workpiece dimensions, required clamping force, frequency of adjustment, and operating conditions.

Easy positioning and a consistent fit can be particularly important for applications with frequent changes of setup. More attention should be given to strength and reliable engagement for heavier work holding.

A good understanding of the application helps you narrow down the options instead of just picking a bolt because it fits the slot.

Why All Six Specs Are Important Together

It is tempting to look at fasteners one specification at a time, but the proper T-slot bolt has to work as part of an entire system.

For instance, a bolt may have the correct thread, but the wrong slot size. Another may fit the slot but be too short for the fitting. A bolt of the correct size may still be unsuitable if the material or strength is not suitable for the application.

Go through these six points together before you buy:

●     Slot size and compatibility

●     Thread size and pitch

●     Total bolt length

●     Material and strength specifications

●     Head shape and size

●     Clamping and application requirements

A simple check can help avoid unnecessary ordering and installation problems.

Avoid Choosing Based on Price Alone

Price is important, especially when you are buying larger quantities, but it should not be the only thing you are looking at. Time, replacement costs, and downtime are costs associated with an inexpensive fastener that is inappropriate for the application.

Instead, check specs first. Once you have a few compatible options, you can use factors such as finish, availability, quantity, and price to determine the most practical choice.Conclusion:

The first step to choosing the best T-slot bolts is understanding what your machine table and workholding actually require. Size of the slot, size of the thread, length, material, head design, application requirements. All of these determine if a fastener is a good choice. Rather than choosing t-slot bolts based on looks or price, compare these six specifications and consider the use of the complete assembly.

A bit of attention to detail before ordering can ease installation, provide reliable clamping, and help create a more adaptable machine-table setup.
