How to Weld Incoloy 800H Pipes Without Cracking

Introduction

Incoloy 800H pipes are used where the temperature is high, and structures face harsh conditions for longer periods. The alloy holds strength at elevated temperatures and resists oxidation and creep. That’s why it is common in process and heat handling systems.

Welding needs attention. If heat input is not controlled or the setup is not right, cracking can show up during or after welding. In some cases, the weld may look fine at first but fail later under service conditions.

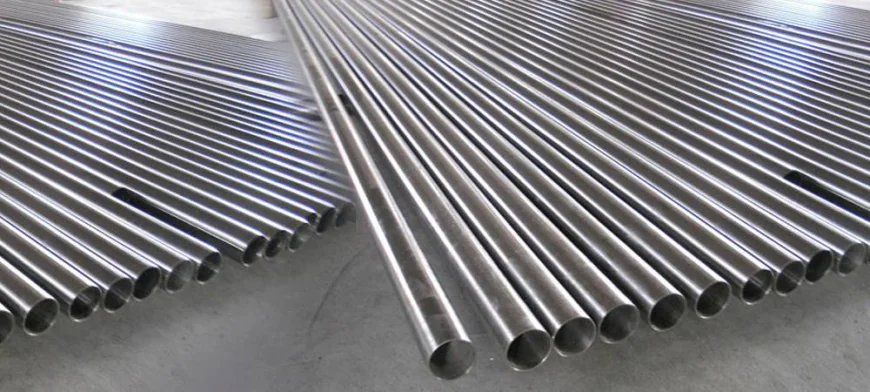

About Incoloy 800H Pipes

Incoloy 800H is a nickel-iron-chromium alloy. It has controlled carbon content, which helps with better creep strength compared to the standard 800 grade.

The material performs well at high temperatures. It resists oxidation and carburisation in furnace and chemical environments. Strength does not drop quickly even after long exposure.

These pipes are used in heat exchangers, reformer units, furnaces, and petrochemical plants. You will also see them in ammonia and hydrogen service lines.

Common Causes of Cracking During Welding

• High heat input is one of the main issues. When the weld area gets too hot, the metal expands more than it should and then contracts during cooling. This creates stress in and around the weld zone. Overheating also affects the grain structure, which reduces resistance to cracking.

• Filler material that does not match the base alloy creates problems. Incoloy 800H has a specific composition and strength level. If the filler is not compatible, the weld metal and base metal behave differently under heat, which can lead to cracking over time.

• Surface contamination is often ignored, but it shows up in the weld. Oil, grease, dust, or even moisture can introduce impurities into the weld pool. This can cause porosity and weak spots, which may later develop into cracks under load or temperature.

• Rapid cooling after welding creates internal stress. The weld and surrounding metal do not cool evenly, so stress builds up in the joint. In high-temperature alloys like 800H, this can lead to delayed cracking.

• If a joint is overly tight, misaligned, or inadequately prepared, stress won't be evenly distributed. This uneven distribution makes certain areas more susceptible to cracking, especially during cooling or service.

Pre-Welding Preparation

Start with cleaning. The pipe surface should be free from oil, grease, dust, and oxide layers. Even small contamination can affect the weld. Stainless steel wire brushes or approved cleaning agents can be used.

Fit-up should be proper. Misalignment creates stress points. Check the root gap and alignment before welding. Edge preparation depends on thickness. Beveling is required to ensure full penetration for thicker pipes. Preheating is generally not required for Incoloy 800H. In thicker sections, a slight preheat may be used to reduce temperature variation, but it is not standard practice.

Recommended Welding Methods

Different welding methods can be used for Incoloy 800H pipes. Selection depends on thickness, location, and required control during welding.

TIG (GTAW) Welding

TIG welding is used where precise control is needed. It suits thin pipes and critical joints. Heat input must remain low. A stable arc helps maintain consistent weld quality.

MIG (GMAW) Welding

MIG welding is suitable for thicker sections where faster work is required. It provides higher deposition rates. Welding parameters must be controlled properly to prevent overheating and distortion in joints.

Shielded Metal Arc Welding (SMAW)

SMAW is used in field jobs where access is limited. It is flexible and does not need a complex setup. Heat control depends on operator skill and correct electrode handling.

Filler Material Selection

Filler metal selection should match the base material. ERNiCr-3 is commonly used. Other equivalent fillers can also work if the composition is compatible. The idea is simple. The filler should not create a weak weld zone. Chemical mismatch can lead to cracking or reduced corrosion resistance.

Avoid using fillers meant for stainless steel or other nickel alloys unless verified. Small differences in composition can affect performance later.

Best Welding Practices

Heat input must be controlled, too much heat affects the microstructure and increases cracking chances. Stringer beads are preferred over wide weaving. This approach helps concentrate and control the heat.

Interpass temperature should be monitored. Do not allow the joint to get too hot between passes. Cooling should be gradual. Do not force cooling with water or air jets. Sudden cooling leads to stress buildup.

Post-Weld Treatment

Post-weld steps help reduce stress, remove surface contamination, and check weld quality before the component is put into service.

• Stress relieving may be applied depending on service conditions. For high-temperature applications, this helps reduce residual stress from welding. It is not always mandatory, but used when the component will be exposed to long-term heat or pressure.

• Clean the weld area properly after welding. Remove slag, oxide scale, and any discolouration. Stainless steel brushes or pickling methods are commonly used. Leaving oxidation on the surface can affect corrosion resistance.

• After cleaning, inspect the surface for any flaws. Early detection of issues like cracks, porosity, or inconsistent welds is essential. Small defects can grow during service.

• Avoid rapid cooling after welding. Let the joint cool naturally in the air. Forced cooling can introduce internal stress.

• If required, light grinding or finishing may be done to smooth the weld surface, especially in flow lines where rough welds can affect performance.

Inspection and Quality Control

Inspection checks the weld condition, finds surface and internal defects and makes sure the dimensions meet the requirements before the pipe is approved for use.

• Start with visual inspection. Look for surface cracks, undercut, overlap, or incomplete fusion. This step is simple but often catches obvious issues.

• Dye penetrant testing is used to find fine surface cracks that are not visible. It is commonly used for nickel alloys like Incoloy 800H.

• Ultrasonic testing helps detect internal defects such as lack of fusion or inclusions. It is useful for thicker sections.

• In critical applications, radiographic testing may also be used to check weld integrity across the full thickness.

• Dimensional checks are non-negotiable. Verify that the welds are of the correct dimensions and that the joint geometry conforms precisely to the specifications on the drawing.

• In most industrial settings, documentation and traceability are standard practice. Welding parameters, filler batch, and inspection reports are recorded for future reference.

Conclusion

Welding Incoloy 800H pipes needs controlled handling at every stage. Heat input should stay within limits, and filler selection must match the base material. Surface preparation and fit-up also affect the final result more than expected.

Most cracking issues come from overheating, contamination, or poor control during welding. These are avoidable. Post-weld cleaning and inspection help catch defects early. In most cases, consistent parameters and basic checks are enough to maintain weld quality and long-term performance.
