Are Ground Control Points the Missing Link in Your Drone Mapping Accuracy

Drone technology has revolutionized how aerial data acquisition is conducted in the sky. Drones perform aerial mapping at a low cost, delivering rapid services to meet construction needs, agricultural practices, real estate, and environmental research requirements. The combination of GPS systems with high-resolution cameras does not eliminate accuracy issues for drone operators. The implementation of ground control markers might be the solution under these circumstances.

The off-target inconsistencies in your map measurements require you to consider using GCPs, as they may help fill your precision requirement gap.

The following text explains what ground control markers entail and explains their significance for improving drone data reliability.

What Are Ground Control Markers?

Drone operators place specific ground markers prior to flights to establish survey control points (GCPs). These markers are assigned precise geographic coordinates using high-accuracy GPS equipment. During aerial capture, the visible markers serve as fixed reference points in imagery. In post-processing, GCPs align drone data with real-world locations, ensuring maps and models reflect accurate geographic positions. By anchoring measurements to these verified points, operators eliminate spatial distortions and validate output accuracy.

Why Drone GPS Alone May Not Be Enough

The majority of drone operators incorrectly believe that their drone's GPS provides sufficient mapping precision. Drone GPS technology has improved considerably, yet it still falls short of meeting the requirements of commercial mapping work. Especially, when operating in complex geographical areas.

The accuracy level of standard commercial drone GPS systems depends on the quality of reception, atmospheric conditions, and any potential interference. The tolerable level of GPS error for hobbyists is insufficient to meet the professional requirements that demand survey-grade accuracy.

The Role of GCPs in Aerial Mapping

Making constant measurements against ground control points significantly lowers the position errors that affect mapping data. Your mapping software detects knocks made on physical markers for reference information. The location of this particular spot aligns with the Earth's mapping. The points enable your software to improve accuracy by validating information obtained from drone imagery.

The construction industry requires precise measurements to monitor development status and identify potential problems, allowing for informed decision-making and subsequent steps. Your map's accuracy in displaying field crop health will suffer if it is not properly aligned. GCPs help eliminate that risk.

Benefits of Using Ground Control Points

1. Higher Accuracy:

The implementation of GCPs enables you to decrease the error range in your maps from several feet to a few centimeters. The accuracy required for commercial use usually falls within this threshold.

2. Better Alignment with Existing Maps:

Through the proper use of ground control markers (GCPs), drone integration with previous surveys becomes possible, and alignment becomes consistent.

3. Enhanced 3D Modeling:

GCPs enable the production of precise elevation models and 3D visualizations. They also enable models with better depth precision and top-to-bottom vertical accuracy.

4. Trustworthy Data for Clients:

Map accuracy at high levels produces reliable data that clients use for their decision-making processes. The adoption of GCPs develops a proven reputation and future business collaboration.

Are GCPs Always Necessary?

General inspections, casual surveys, or small projects that do not require more than minor positional inaccuracies do not necessitate the use of GCPs. However, professional-grade mapping with zero error tolerance does involve the use of GCPs.

Because RTK and PPK drones improve positioning accuracy, it may be possible to work without GCPs in certain situations. These GPS precision enhancement systems work better with a few ground control markers as an additional quality check.

How to Use GCPs Effectively

1. Plan Your Placement

The area of interest needs evenly distributed GCPs, which should be placed near corners and at the center.

2. Use Quality Markers

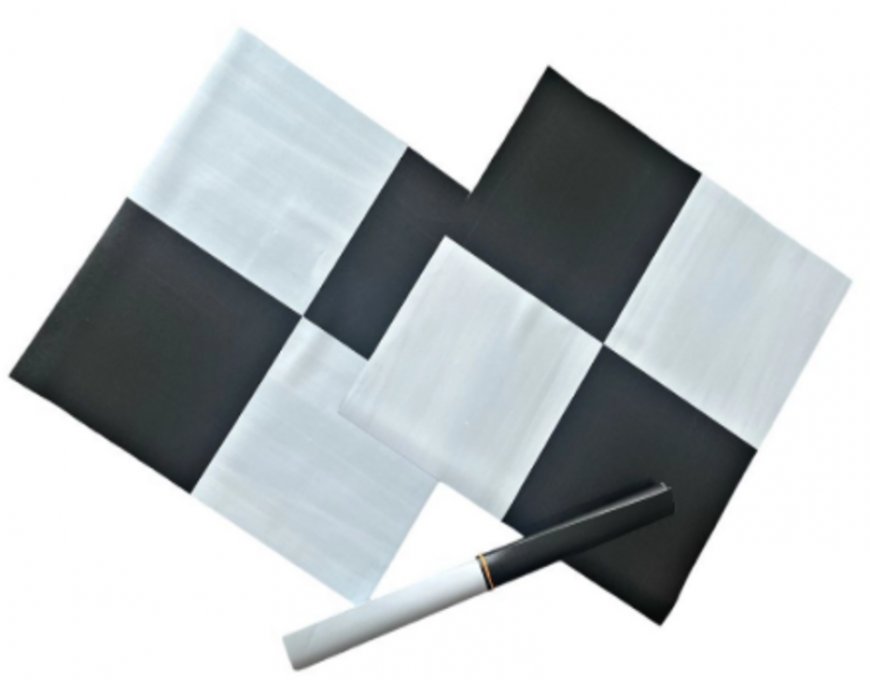

Aircraft operators should be able to identify markers from above by using painted targets, large checker tarps, and printed symbolic objects.

3. Survey Each GCP with Precision

A GPS device with high accuracy should record the exact marker positions using coordinates.

4. Record Everything

Maintain records that document the position and overall condition of each GCP, along with any notes recorded during the shooting time. The recorded information proves beneficial when processing data.

5. Process with the Right Software

The mapping software Pix4D or Drone Deploy supports GCP integration for importing images and control points.

Conclusion

It is improper to dismiss a mapping problem if your drone maps seem accurate yet fail to match real-world locations. Map precision requires perfect accuracy more than good looks since project construction outcomes and environmental studies depend heavily on these data points.

Ground control markers are vital precision mapping instruments that significantly contribute to mapping operations. They also serve as the threshold that turns average drone work into perfect drone work for most professionals.

A minimal number of strategic markers within your working processes will yield superior-quality aerial data and verified client outcomes. A successful mission preparation process requires considering whether ground control markers can provide essential support for your mapping project.
