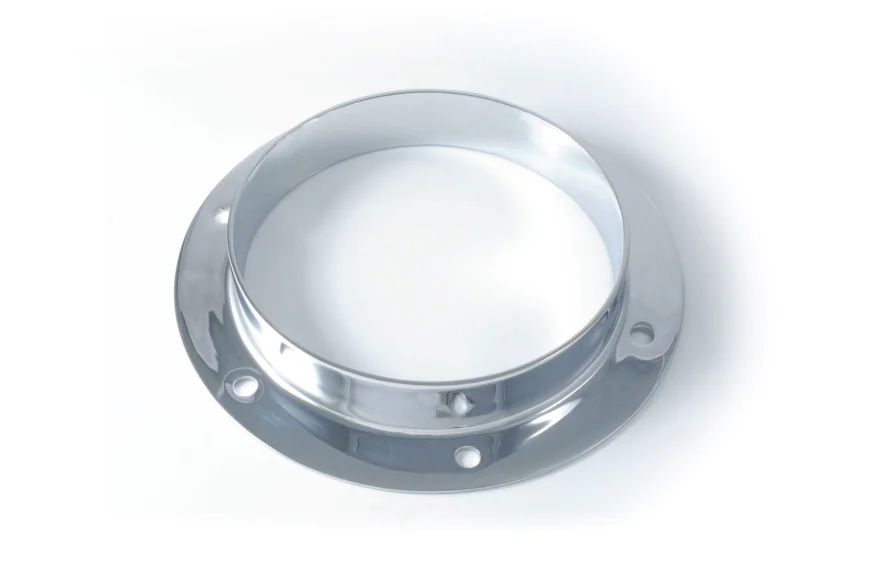

Scaling OEM Angle Ring Production Without Losing Quality
It happens too often. An order for hundreds of angle rings arrives. Something looks off. Some rings leak, bolt holes misalign, and welds crack.
Sophia smith
It happens too often. An order for hundreds of angle rings arrives. Something looks off. Some rings leak, bolt holes misalign, and welds crack. Customers complain, and production slows down. What if OEM angle ring output could scale without those failures? What if quality stayed strong, no matter how many rings go out the door? That matters because reliability, cost per unit, and reputation depend on it.
Why Scaling OEM Angle Ring Production Is Hard?
Scaling manufacturing often introduces problems that are invisible at prototype or low volume. For angle ring OEM projects, the key challenges include:
● Material variability: steel plates or angles arriving with thickness variations or inconsistent yields
● Tooling wear: dies, rollers, press brakes slowly deviate from spec, rounding heels, loosening bolt hole tolerances
● Inspection lag: defects arising in earlier stages go undetected until final assembly or even later in the field
● Labor consistency: different operators, shifts, or vendors mean differing workmanship
A forum post from a fabrication shop noted this: after producing ~500-angle rings, the leg angle of many rings was no longer square. They needed rework with secondary tooling, which reduced throughput and increased scrap.
Quality Control Steps for Angle Ring OEM Scaling
These practices help maintain quality even when volume rises sharply.
- Standardise material procurement
● Steel angles and plates from suppliers are required with certified thickness/tolerance ranges.
● Use material test reports. Track yield strength and chemical composition.
- Tooling calibration schedules
● Measure dies and rollers for wear at fixed intervals.
● Use gauge blocks or angle squares to check the heel angle after a batch of X-rings.
● Replace or regrind tooling before quality drifts too far.
- In-line inspection and sampling
● Inspect ring leg angle, bolt hole diameter & location, and weld imperfections before coating/finishing.
● For example, depending on criticality, sample 5% of each batch for a destructive test (bend, load).
- Process documentation
● Create detailed work sheets for forming, welding, hole drilling, and finishing.
● Maintain records of who did what, when, and with which tooling.
- Consistent operator training
● Hold skill assessments.
● Use visual aids or jigs to align bolt holes, the leg angle remains squar.
- Use non-destructive inspection (NDI)
● Dye penetrant, ultrasonic, or magnetic particle testing can catch cracks or microscopic defects invisible to the eye.
● Especially after welding or high-stress forming.
Less Obvious Insights from Field Experts
These tactics come not from official handbooks but from craftspeople who build angle rings daily.
● Pre-bending before rolling helps offset spring back. If the angle ring OEM process includes a roll forming step, slightly pre-bend the ends so the final ring leg remains square.
● Heat treatment after forming: small annealing of formed areas reduces internal stress and helps welds hold better under cyclic loading.
● Use sacrificial copper backing when welding bolt holes. Forge or press bolt holes first, then weld; the copper backing prevents burn-through and ensures weld quality.
● Carry “reject” templates: small gauge pieces representing the worst acceptable error margins. Workers can compare rings quickly by overlay.
● Photo log archives: document each batch with images of key features. Over time, pattern recognition helps improve tooling or process before failure escalates.
How Can an OEM Scale Without Losing Quality?
Putting it all together, an OEM manufacturing angle ring component should:
● Build a process map from the raw material receipt to the packing. Include QC points.
● Set up tooling maintenance logs. Replace tools before they fail spec.
● Use operator checklists and visual aids. Every shift should check a sample ring.
● Commit to an NDI protocol for critical components (bolt areas, welds, sealing surfaces).
● Optimize the layout so that forming, welding, and finishing happen to reduce handling distortion.
Summary
The scaling angle ring OEM output can no longer accept quality slip-ups. Proper material sourcing, rigorous tooling calibration, in-line inspection, process documentation, operator training, and use of NDITs protect quality at volume. Hidden practices like pre-bending ends, using copper backing for welding, and keeping photo logs help too.
Once the process works, OEMs can consistently deliver thousands of angle rings that meet spec, reduce scrap and rework, and maintain reputation and customer trust.
Check existing angle ring OEM suppliers against this checklist. Ask for sample rings tested for heel angle, bolt hole alignment, and weld strength. Request inspection documentation. Place a pilot batch with complete QC before scaling. Those steps cost little compared to defects, returns, or downtime losses.
