How To Install Ductile Iron Pipe Fittings correctly starts with planning the trench, inspecting the fitting, preparing the joint, installing the connection, providing thrust restraint, backfilling, testing, disinfecting potable-water lines where required, and commissioning the pipeline.

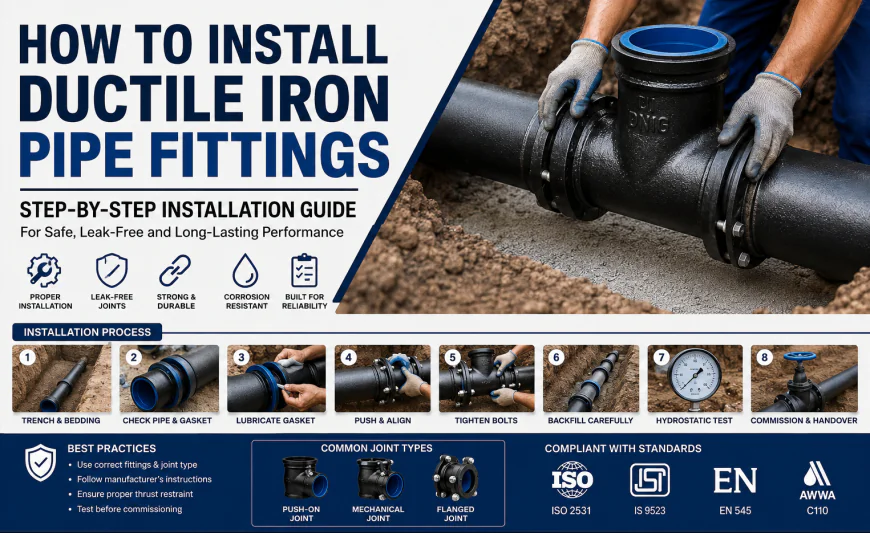

How to Install Ductile Iron Pipe Fittings: Step-by-Step
1. Review the Approved Design and Installation Method
Before excavation or fitting assembly, review the approved pipeline drawings, fitting schedule, pipe and fitting standard, joint type, design pressure, alignment, invert levels, restraint details, bedding specification and testing requirements. Confirm that the fitting dimensions and joint configuration match the mating pipe and accessories.
ISO 21051:2020 provides recommended practices and requirements for construction and installation of buried and above-ground ductile iron pipeline systems, including pipes, fittings, valves and accessories. Use it as a technical reference alongside the project specification and applicable national requirements.
2. Prepare the Trench and Bedding
Excavate to the approved line, level and depth. Provide stable bedding and sufficient working space around joints. Remove sharp stones, debris and unsuitable material that could damage the pipe, fitting, gasket or external coating.
- Follow the approved geotechnical and trench-support requirements.
- Keep the trench safe for workers and provide access/egress as required.
- Prevent standing water or unstable trench conditions from affecting joint assembly.
- Use the specified bedding and embedment material rather than choosing a generic material on site.
3. Inspect the Ductile Iron Fitting Before Installation
Inspect each fitting before lowering it into the trench. Check the casting, joint surfaces, coating or lining, markings and accessories. Do not install a component with visible cracks, unacceptable damage, contaminated joint surfaces or a configuration that does not match the approved material schedule.
- Confirm nominal diameter and fitting type.
- Verify the joint type and mating dimensions.
- Check for transport or handling damage.
- Inspect gaskets for cuts, deformation, contamination or deterioration.
- Confirm required certificates or inspection records are available.
4. Clean the Socket, Spigot and Joint Components
Clean the socket, spigot, gasket groove and other jointing surfaces according to the manufacturer's instructions. Remove soil, sand, grease, standing water and other contaminants that could prevent correct gasket seating.
Never use a damaged gasket simply because it appears to fit. The gasket material, profile and lubricant should be the type specified for the joint and service.
5. Seat the Gasket Correctly
For gasketed joints, install the gasket evenly in its designed groove. Make sure it is not twisted, rolled, partially displaced or contaminated. Apply only the manufacturer-specified lubricant and use it in the locations and quantity recommended for that joint system.
A gasket that is incorrectly seated can create a leakage path even when the fitting itself is correctly manufactured.
6. Assemble the Joint According to Its Type
Push-On / Push-Fit Joints
Clean and lubricate the mating surfaces as specified, then align the pipe or fitting and push the spigot into the socket to the manufacturer's reference position. Use the specified installation equipment and avoid damaging the gasket or coating during assembly. Confirm final insertion and alignment using the joint manufacturer's procedure.
Mechanical Joints
For a mechanical joint, position the gland, gasket and bolts according to the manufacturer's assembly sequence. Tighten the bolts progressively and evenly in a cross or star sequence, using the specified torque or bolt-tightening procedure. Do not fully tighten one bolt while leaving the opposite bolts loose.
Flanged Joints
Align the flanges without forcing them into position. Install the correct gasket and bolts, then tighten progressively and evenly in the specified sequence. The final torque or tightening requirement must come from the project specification or component manufacturer; do not substitute a generic torque value.
7. Provide Thrust Restraint Where the Design Requires It
Changes in direction, branches, reductions and closed ends can generate hydraulic thrust when a pressurized pipeline is operating. The approved design must provide a suitable restraint method where required.
- Concrete thrust blocks may be used where designed for the applicable pressure and soil conditions.
- Restrained-joint systems may be used where specified and properly designed.
- Mechanical restraint, anchors or other engineered solutions may be required in particular installations.
Do not assume that every bend or tee requires the same restraint arrangement. Follow the approved thrust/restraint calculation and project drawings.
8. Backfill and Compact the Pipeline Correctly
Place specified embedment and backfill materials carefully around the pipe and fitting. Compact in the lifts and manner required by the project specification. Avoid dropping large stones or construction debris directly onto the pipeline and take precautions to prevent coating damage.
Maintain alignment and support during backfilling. Where joint inspection or testing requires the pipeline to remain partially exposed, follow the testing and backfill sequence in the project method statement.
9. Hydrostatic Testing After Installation
After the relevant installation section is ready, perform the required hydrostatic acceptance test in accordance with the project specification and applicable standard. ISO 10802:2020 specifies site hydrostatic acceptance tests for installed pressure and non-pressure ductile iron pipelines conveying water and other liquids; it does not cover gas pipelines.
Do not publish or apply a generic test pressure simply because it is common in another project. The exact pressure, test section, stabilization procedure, duration, allowable pressure loss and acceptance criteria must come from the applicable standard and approved project documents.
10. Disinfect Potable-Water Pipelines Where Required
For drinking-water pipelines, follow the applicable local authority, project and water-supply disinfection requirements before putting the line into service. Cleaning, disinfection, flushing, sampling and acceptance requirements can vary by jurisdiction and project specification.
11. Commission and Document the Pipeline
After testing and any required disinfection are accepted, commission the pipeline in accordance with the approved method statement. Inspect accessible joints, record test results and retain the required quality documentation.
- Hydrostatic test records
- Inspection and material certificates
- Gasket/joint documentation where required
- Disinfection and water-quality records for potable-water lines
- As-built drawings
- Installation and handover records
Push-On vs Mechanical Joint Installation
| Factor | Push-On Joint | Mechanical Joint |
|---|---|---|
| Primary assembly | Spigot is inserted into the socket after correct gasket preparation. | Gasket and gland are positioned and bolts are tightened progressively. |
| Critical checks | Gasket seating, cleanliness, lubrication, alignment and insertion. | Gasket/gland position, alignment and specified bolt-tightening procedure. |
| Tools | Approved assembly equipment suitable for the pipe/fitting. | Suitable wrench/torque equipment and the manufacturer's tightening procedure. |
| Restraint | Depends on pipeline design and joint system. | Depends on pipeline design; do not confuse a mechanical joint with a restrained joint. |
| Best practice | Follow the exact joint manufacturer's installation instructions. | Use the specified bolt sequence and torque/procedure; never guess. |
Common Ductile Iron Fitting Installation Mistakes
| Mistake | Potential consequence | Prevention |
|---|---|---|
| Dirty joint surfaces | Gasket seating problems and leakage | Clean socket, spigot, groove and gasket before assembly. |
| Twisted or damaged gasket | Joint leakage or premature failure | Inspect and seat the correct gasket carefully. |
| Incorrect lubricant | Joint damage or gasket compatibility issues | Use only the lubricant specified for the joint system. |
| Uneven flange/MJ bolt tightening | Uneven compression and leakage | Use the specified progressive tightening sequence and torque/procedure. |
| Missing or incorrectly designed restraint | Joint movement or separation under hydraulic thrust | Follow approved thrust and restraint calculations. |
| Generic test pressure | Invalid or non-compliant acceptance test | Use the project's applicable standard and approved test procedure. |
| Careless backfill | Coating damage, movement or loss of support | Use specified embedment and controlled compaction. |
Ductile Iron Fitting Installation Checklist
- Approved drawings and method statement reviewed
- Correct fitting size, type, joint and standard verified
- Trench and bedding meet the project specification
- Fitting inspected for damage and casting defects
- Socket, spigot, gasket and joint surfaces cleaned
- Correct gasket and approved lubricant used
- Joint assembled according to manufacturer instructions
- Flange/MJ bolts tightened using the specified sequence and procedure
- Thrust/restraint system installed as designed
- Backfill and compaction completed as specified
- Hydrostatic test completed and documented
- Potable-water disinfection completed where required
- As-built and handover documentation completed
Standards and Technical References for DI Fitting Installation
| Reference | Why it matters |
|---|---|
| ISO 21051:2020 | Construction and installation of ductile iron pipeline systems, including pipes, fittings, valves and accessories. |
| ISO 10802:2020 | Hydrostatic acceptance testing after installation for ductile iron pipelines conveying water and other liquids. |
| ISO 2531:2009 | Product requirements and joint performance for ductile iron pipes, fittings, accessories and joints for water applications. |
| DIPRA Installation Guide | Practical field guidance for ductile iron pipe installation and related installation topics. |
When Should You Use a Professional Installation Method Statement?
For municipal, industrial, EPC and government projects, a written method statement should define the installation sequence, equipment, jointing procedure, safety controls, trench requirements, restraint approach, testing, disinfection where applicable, inspection points and documentation. The method statement should be project-specific rather than copied from a generic online guide.
FAQs About Ductile Iron Pipe Fitting Installation
How do you install ductile iron pipe fittings?
Prepare the trench and bedding, inspect the fitting, clean the joint, correctly seat the gasket, assemble the specified joint, provide designed thrust restraint, backfill and compact, hydrostatically test, disinfect potable-water lines where required, and commission the system.
What is the most important step when installing a ductile iron fitting?
There is no single universal step. Clean joint surfaces, correct gasket seating, proper joint assembly, adequate restraint and compliant testing are all critical. The exact priority depends on the joint and project design.
Do ductile iron fittings need thrust blocks?
Thrust restraint is required where the pipeline design identifies hydraulic thrust that must be resisted. The approved design may use concrete thrust blocks, restrained joints, anchors or another engineered restraint method. Do not assume one solution applies to every fitting.
What lubricant should be used for ductile iron pipe joints?
Use the lubricant specified by the pipe or fitting joint manufacturer for that gasket and service. Avoid substituting household oils, greases or unapproved products.
How should mechanical joint bolts be tightened?
Position the gland and gasket correctly, then tighten bolts progressively and evenly using the manufacturer's specified sequence and torque or tightening procedure. Do not use a generic torque value unless it is approved for that specific joint.
What standard covers ductile iron pipeline installation?
ISO 21051:2020 specifically addresses construction and installation of ductile iron pipeline systems. Project requirements may also reference national standards, owner specifications and manufacturer installation instructions.
What standard covers hydrostatic testing after ductile iron pipeline installation?
ISO 10802:2020 specifies site hydrostatic acceptance tests for installed pressure and non-pressure ductile iron pipelines conveying water and other liquids. The project specification should define the exact test procedure and acceptance criteria.
Is disinfection required after installing every ductile iron pipeline?
No. Disinfection requirements depend on the service. Potable-water pipelines normally have specific cleaning, disinfection and water-quality acceptance requirements; non-potable services follow their applicable commissioning requirements.
Read more: How to Install Ductile Iron Pipe Fittings: Step-by-Step Guide
Conclusion
Correct installation is essential to the performance of a ductile iron pipeline system. The safest approach is to follow the approved project design, the applicable installation and testing standards, and the exact instructions for the pipe, fitting and joint system being installed.
For ductile iron fitting procurement, Truform Techno Products Pvt Ltd can support specification-based supply and export requirements. For project enquiries, provide the fitting type, nominal size, joint type, applicable standard, service conditions and required documentation so the product can be matched to the project specification.
Authoritative Sources
- ISO 21051:2020 — Construction and installation of ductile iron pipeline system
- ISO 10802:2020 — Hydrostatic testing after installation
- ISO 2531:2009 — Ductile iron pipes, fittings, accessories and joints for water applications
- DIPRA — Installation Guides
Technical note: This article is a general installation guide, not a substitute for the approved project drawings, engineering calculations, manufacturer instructions, local regulations or site safety plan. Always use the applicable standard and current project specification.
