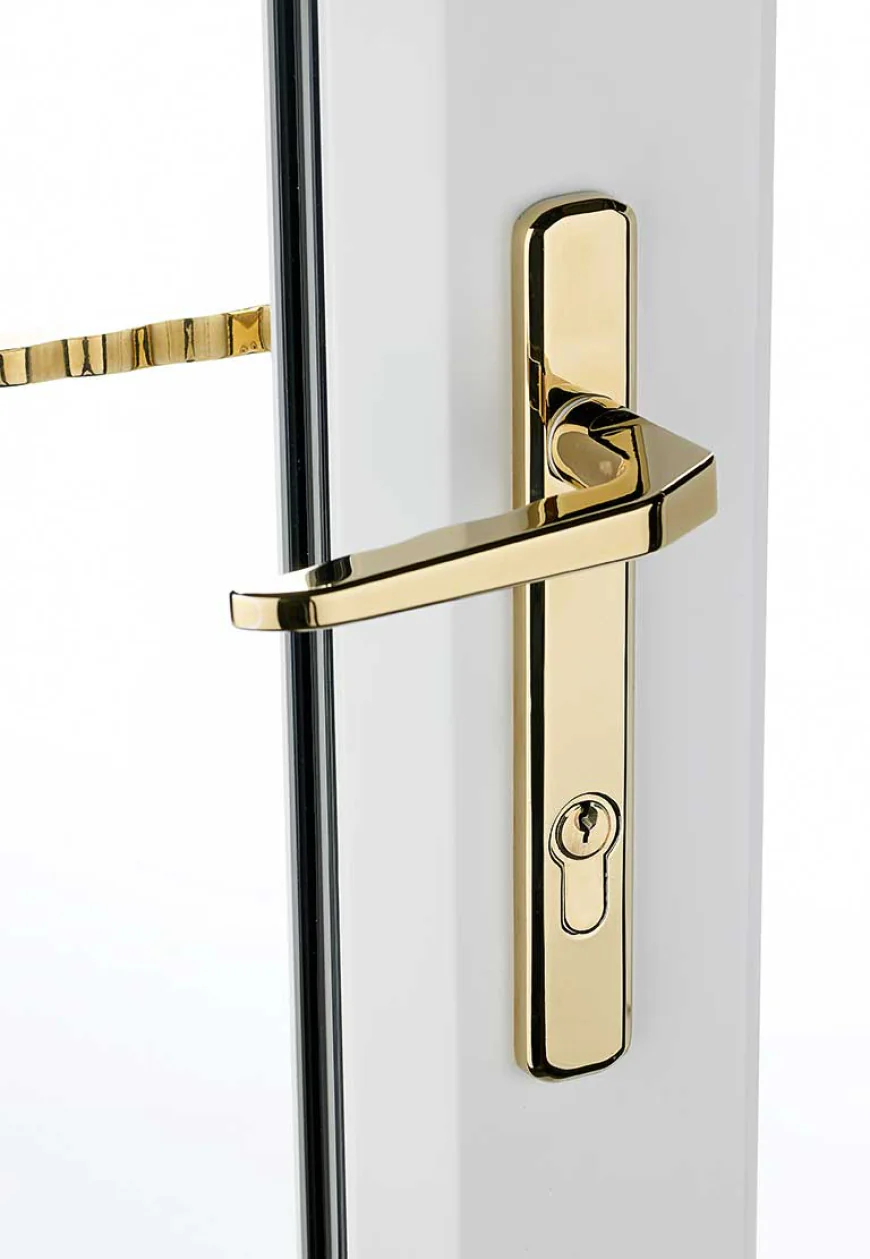

How to Install a UPVC Door Knob: Step-by-Step Guide

Whether you're replacing a faulty door knob or simply upgrading for aesthetics and functionality, this guide will walk you through the entire process.

Why Choose a uPVC Door Knob?

Before diving into the installation process, it’s important to understand why uPVC doors are different from wooden or metal ones. uPVC Door Knob are highly durable, weather-resistant, low-maintenance, and energy-efficient. However, due to their unique structure and material, they require specific types of door hardware and installation techniques.

Door knobs for uPVC doors are often part of a multipoint locking system, so care must be taken not to interfere with this mechanism during installation.

Tools and Materials Needed

Before you begin, gather the following tools and materials:

New uPVC-compatible door knob set

Screwdriver (usually Phillips or flathead)

Electric drill with appropriate bits (optional but helpful)

Measuring tape

Pencil or marker

Allen key (sometimes included with the knob)

Safety gloves and glasses

Screws (usually included in the door knob kit)

Step 1: Check Compatibility

Not all uPVC Door Knob are compatible with uPVC doors. uPVC doors typically require handles and knobs designed for multipoint locks or lever-operated mechanisms. Make sure the knob you're installing is labeled for use with uPVC doors or is part of a compatible set.

Also, check whether your door has an existing handle or knob, and whether it includes a lock. If you’re replacing an old knob, measure the backset (distance from the edge of the door to the center of the knob hole) and spindle size to ensure your new knob fits properly.

Step 2: Remove the Old Door Knob

If you’re replacing an existing knob, start by removing it:

Unscrew the Screws: Locate the screws on the interior side of the door knob. Use a screwdriver to remove them.

Remove the Knob and Backplate: Pull off the knob and backplate from both sides of the door.

Take Out the Spindle and Latch: Slide out the spindle and unscrew the latch from the door edge. Remove all components carefully to avoid damaging the uPVC surface.

Clean the area to remove dirt and debris before installing the new hardware.

Step 3: Mark the Drilling Points (For New Installations)

If you're installing a knob on a new uPVC door (i.e., without an existing hole), you’ll need to carefully mark where to drill:

Measure and Mark the Backset: Standard backset measurements are either 60mm or 70mm. Measure this distance from the door edge and mark the center point.

Mark the Height: Standard knob height is around 900mm to 1050mm from the floor, but you can adjust this to match other doors in your home.

Mark the Edge for the Latch: Align your latch plate with the door edge and mark the position.

Be cautious when marking and drilling into uPVC; it’s a non-wood material and cannot be easily patched if errors are made.

Step 4: Drill the Holes

Once you're confident in your measurements:

Drill the Face Hole: Using an appropriate hole saw (usually 54mm), drill a hole through the door face at your marked point.

Drill the Latch Hole: Use a spade bit (usually 25mm) to drill into the door edge for the latch mechanism.

Drill Screw Holes (if needed): Some door knobs come with a backplate requiring screw mounting. Pre-drill pilot holes as directed by the manufacturer.

Always use a sharp bit and drill slowly to prevent cracking or damaging the uPVC material.

Step 5: Install the Latch

Slide the latch mechanism into the edge hole and make sure the latch plate sits flush with the door edge.

Position the Latch: Make sure the beveled edge of the latch faces the direction the door closes.

Secure the Latch: Use the screws provided to fasten the latch to the door edge. Make sure it’s snug and aligned correctly.

Step 6: Insert the Spindle

Insert the spindle through the latch mechanism. This metal rod connects both knobs and allows the turning motion to retract the latch.

Ensure the spindle is aligned and fits smoothly through the latch. If the spindle is adjustable or split, follow the manufacturer’s instructions.

Step 7: Attach the Knobs

Now it’s time to attach the knobs themselves:

Align the Exterior Knob: Fit the knob with the spindle opening over the spindle from the outside.

Attach the Interior Knob: Align it with the spindle on the inside of the door. Ensure that the screw holes line up.

Tighten Screws: Use a screwdriver or Allen key to tighten the screws through the interior knob into the exterior one. Don’t overtighten, as it can damage the uPVC or deform the knob.

Check that the knob turns smoothly and that it retracts the latch when turned from either side.

Step 8: Test the Mechanism

Before finishing the job, open and close the door several times to check:

The knob turns smoothly

The latch retracts fully and aligns with the strike plate

The door closes and locks properly (if a locking knob is used)

If the latch sticks or the knob feels stiff, disassemble and check for alignment or debris inside the mechanism.

Step 9: Install the Strike Plate

If the strike plate on the uPVC door knob frame needs replacement or doesn't align with the new latch:

Mark the Position: Close the door and mark where the latch meets the frame.

Attach the Strike Plate: Use screws to fasten the new strike plate. Ensure it’s aligned and doesn’t obstruct the latch.

Step 10: Final Inspection and Cleanup

Once everything is in place:

Tighten any loose screws

Check for smooth operation again

Clean the area with a soft cloth to remove dust or fingerprints

Dispose of old hardware responsibly, and keep the instruction manual for future reference.

Troubleshooting Tips

Knob Feels Loose: Check if the screws are fully tightened or if the spindle is too short.

Latch Doesn’t Retract: Ensure the spindle is properly inserted through the latch and that it's not jammed.

Drilled Wrong Hole Size: Use spacers or consult a professional if the hole is too large.

Conclusion

Installing a uPVC door knob is a manageable DIY project when approached with care and the right tools. Whether you're refreshing the look of your home or replacing a worn-out mechanism, this step-by-step guide should make the process seamless.

Always remember that working with uPVC requires a gentle touch. Over-drilling or forcing components can cause permanent damage, so go slow, measure twice, and follow the instructions carefully.

With your new door knob installed, enjoy the added functionality, security, and style it brings to your space.
