EMC Testing: Ensuring Electromagnetic Compatibility in Modern Electronics

In today’s world, electronic devices are everywhere—from smartphones and medical equipment to industrial machinery and automotive systems. As the number of electronic devices grows, so does the risk of electromagnetic interference (EMI), which can disrupt device performance, cause failures, or even pose safety hazards. This is where EMC Testing, or Electromagnetic Compatibility Testing, plays a crucial role.

What is EMC Testing?

EMC Testing is a type of compliance testing that ensures electronic devices operate properly in their electromagnetic environment without causing or suffering from interference. The main goal is to achieve electromagnetic compatibility (EMC), ensuring that devices can coexist without disrupting each other or violating regulatory standards.

In simpler terms, EMC testing checks two main aspects:

1. Emission Testing – Measures the electromagnetic energy emitted by a device to ensure it does not interfere with other devices.




2. Immunity (or Susceptibility) Testing – Evaluates how well a device can resist electromagnetic interference from external sources.

Both aspects are critical for device safety, reliability, and regulatory compliance.

Why EMC Testing is Important

EMC testing is not just a technical requirement; it is essential for the functionality, safety, and market approval of electronic products. Here’s why:

• Prevents Device Malfunctions: Uncontrolled electromagnetic emissions can cause unexpected behaviors in sensitive equipment.

• Ensures User Safety: Devices like medical instruments must not malfunction due to EMI, as this could pose health risks.

• Regulatory Compliance: Many countries, including the USA, EU, and Japan, require EMC compliance for product certification. Non-compliance can result in fines, recalls, or market bans.

• Protects Brand Reputation: Reliable, interference-free products enhance consumer trust and reduce warranty claims.

Key Types of EMC Testing

EMC testing can be classified into several standard categories, depending on the type of interference or immunity being tested:

1. Radiated Emissions Testing

This test measures the electromagnetic energy radiated from a device through the air. It ensures that a device does not emit excessive electromagnetic waves that could affect nearby equipment.

2. Conducted Emissions Testing

Conducted emissions testing measures electromagnetic disturbances transmitted along electrical cables. This ensures that power lines and signal cables do not become a source of EMI.

3. Radiated Immunity Testing

Radiated immunity testing evaluates how well a device resists external electromagnetic fields. Devices must operate correctly even when exposed to nearby sources of radiation like radio transmitters or Wi-Fi networks.

4. Conducted Immunity Testing

This test checks a device’s resistance to interference conducted along cables, such as power lines or communication cables.

5. Electrostatic Discharge (ESD) Testing

Electrostatic discharge is a sudden transfer of electricity between two objects. ESD testing ensures devices can withstand static shocks without functional failures.

6. Surge and Transient Testing

This test evaluates device resilience against voltage spikes or surges, which can occur due to lightning strikes or switching in power lines.

EMC Testing Standards

EMC testing follows internationally recognized standards set by organizations like the IEC (International Electrotechnical Commission), CISPR, and ISO. Some of the widely adopted standards include:

• IEC 61000 series – Covers both immunity and emission requirements for electrical and electronic devices.

• CISPR 22 / CISPR 32 – Standards for radio disturbance and immunity for information technology equipment.

• FCC Part 15 – Regulations in the United States for unintentional and intentional radiators.

Compliance with these standards ensures that products can be safely marketed in target regions without EMI-related issues.

The EMC Testing Process

The EMC testing process typically involves the following steps:

1. Pre-Compliance Testing
   Before full regulatory testing, manufacturers often perform pre-compliance tests in-house to identify potential EMC issues early in the design phase.

2. Laboratory Setup

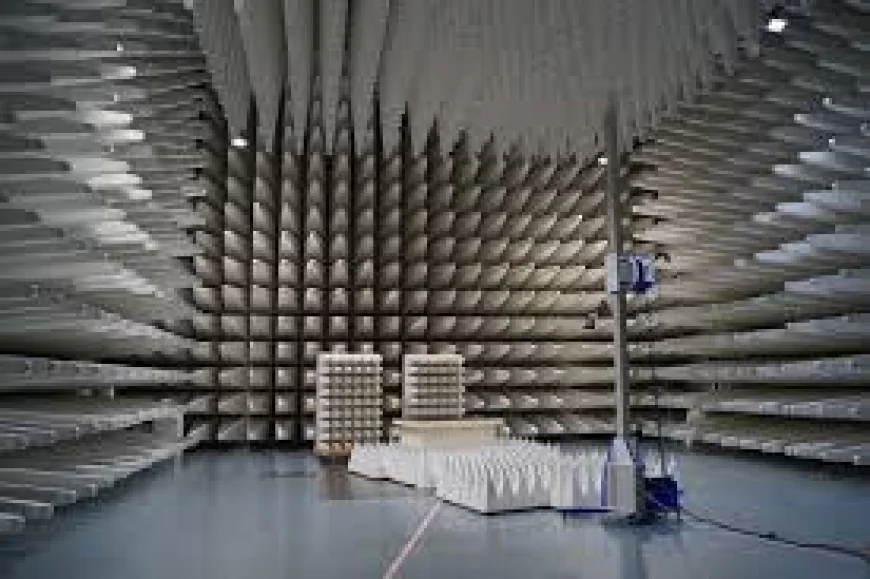

   Testing is conducted in specialized EMC labs equipped with anechoic chambers, EMI receivers, signal generators, and test antennas.

3. Emission Testing
   Devices are powered on, and emissions are measured in controlled environments to check compliance with regulatory limits.

4. Immunity Testing
   Devices are subjected to various forms of electromagnetic disturbances (radiated, conducted, ESD) to evaluate their immunity.

5. Analysis and Reporting
   Test results are analyzed, and a detailed EMC report is generated. Any non-compliance issues are documented, and design adjustments are recommended.

Benefits of EMC Testing

Investing in EMC testing offers numerous advantages:

• Improved Product Quality – Devices function reliably in all environments.

• Faster Market Approval – Compliance with EMC standards speeds up certification and product launch.

• Cost Savings – Early detection of EMI issues reduces costly redesigns and recalls.

• Enhanced Customer Confidence – Products that are interference-free are more likely to be trusted by users.

Industries That Require EMC Testing

Almost every industry that relies on electronics benefits from EMC testing, including:

• Consumer Electronics – Smartphones, laptops, TVs, and smart home devices.

• Medical Devices – MRI machines, monitors, and diagnostic equipment.

• Automotive Electronics – Vehicles with advanced driver-assistance systems (ADAS) and electric cars.

• Industrial Equipment – Robotics, control systems, and automation machinery.

• Telecommunications – Base stations, routers, and wireless devices.

Choosing the Right EMC Testing Lab

Selecting an accredited EMC testing lab is crucial for reliable results. Key factors to consider:

• Accreditation – Look for labs certified by ISO/IEC 17025.

• Experience – Labs with experience in your product type provide faster and more accurate testing.

• Equipment – Modern EMC labs have advanced anechoic chambers, signal analyzers, and automated test systems.

• Global Compliance – Ensure the lab can certify your product for multiple international markets.

Conclusion

In the era of ubiquitous electronics, EMC testing is not optional—it is essential. Ensuring electromagnetic compatibility not only guarantees device functionality and safety but also facilitates market access and regulatory compliance. By investing in thorough EMC testing, manufacturers protect their products, their customers, and their brand reputation.

Whether you are developing consumer electronics, automotive systems, or industrial machinery, EMC testing is a critical step in bringing safe and reliable products to the market.
