How to Use an Edge Finder for Accurate CNC Machining

What Is an Edge Finder Tool and Why It Is Important

An edge finder tool is a small measuring device used on milling machines and vertical machining centers. Its main job is to locate the edge of a workpiece with high accuracy. Once the edge is found, the machine’s zero position can be set correctly. This ensures that all drilling, milling, or cutting operations are done in the right place.

In CNC work, repeat accuracy is very important. When the starting point is correct, the entire machining process becomes smoother. Using an edge finder helps reduce manual measurement errors and improves job quality. It is especially helpful when working with tight tolerances and complex parts.

How an Edge Finder Works in a Workshop

The working principle of this tool is simple. It is mounted in the spindle of the machine and rotated at a low speed. The operator slowly moves the spindle toward the workpiece. When the tool touches the edge, a visible movement or signal is created. This indicates the exact edge location.

Once the contact point is detected, the operator sets the machine’s axis position. This point is then used as a reference for further machining steps. Because of this simple working method, an edge finder is easy to use even for beginners, while still being accurate enough for professional work.

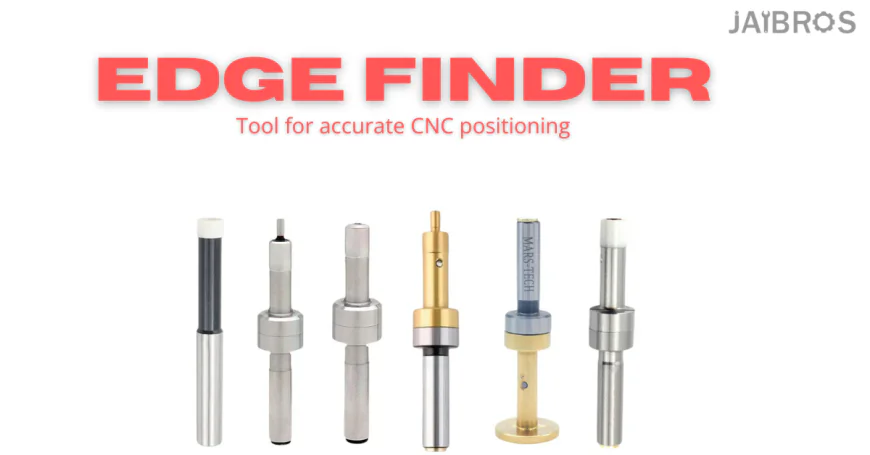

Types of Edge Finders Used in Machining

There are different types of tools available to suit different machining needs. Mechanical versions are the most traditional type. They use physical contact and visual movement to show the edge location. These are widely used because they are simple and cost-effective.

Electronic versions are more advanced and use sensors or lights to indicate contact. An edge finder of this type provides faster results and reduces human error. These tools are preferred in modern CNC workshops where speed and precision are required. Choosing the right type depends on machine setup, accuracy needs, and operator preference.

Using an Edge Finder for VMC Applications

Vertical Machining Centers require very accurate alignment before starting any operation. In VMC machines, the tool helps locate edges along the X and Y axes accurately. This is important for pocket milling, slotting, and precise drilling work.

When using an edge finder in a VMC, the spindle speed must be kept low to avoid tool damage. The machine table is moved slowly until contact is detected. This process ensures that the zero point is set correctly, which improves repeatability in production jobs and reduces setup time.

What Is an Electronic Edge Finder and Its Benefits

Electronic versions of these tools are designed for higher accuracy and ease of use. Instead of relying on visual movement, they give a clear signal such as a light or beep when contact is made. This makes them suitable for noisy workshop environments.

An edge finder with electronic sensing is especially useful for operators who want faster setup times and consistent results. These tools also reduce the chance of operator error, making them a good choice for high-precision CNC work.

How to Choose the Right Edge Finder Tool

Selecting the right tool depends on several factors. Machine type, required accuracy, and operator skill level all play a role. For basic milling work, a mechanical tool is often enough. For advanced CNC and VMC operations, electronic types may be more suitable.

Material type also matters. Softer materials are easier to measure, while harder materials require stable and accurate tools. Using a quality edge finder ensures reliable results and long-term workshop efficiency.

Maintenance and Handling Tips

Proper handling is important to keep the tool accurate. It should be cleaned after use and stored safely to avoid damage. Dropping or mishandling can affect accuracy and performance.

Regular inspection helps ensure consistent results. Even though these tools are small, they play a big role in machining accuracy. Proper care helps extend tool life and maintain precision

Where Can You Get Quality Workshop Tools?

Jaibros is a reliable place for workshop and industrial tool needs because it focuses on quality, accuracy, and practical use. The platform offers a wide range of measuring and machining tools that are suitable for daily workshop work, inspection tasks, and training use. Products are clearly listed with proper details, making it easier for users to choose the right tool for their requirement. Jaibros is known for supporting machinists, technicians, and industries by providing tools that help improve measurement accuracy and work efficiency without confusion.

.

Conclusion

Correct edge location is the foundation of accurate machining. Without proper alignment, even the best CNC program can give poor results. An edge finder helps machinists locate the exact starting point, improve accuracy, and reduce errors. Whether used in manual milling or modern VMC machines, this tool remains an essential part of workshop setup. Choosing the right type and using it correctly can greatly improve machining quality and efficiency.

Frequently Asked Questions (FAQs)

1. What is the main purpose of an edge finding tool?
It is used to accurately locate the edge of a workpiece before machining starts.

2. Can this tool be used on CNC and VMC machines?
Yes, it is commonly used on both CNC and vertical machining centers.

3. What is the difference between mechanical and electronic types?
Mechanical types use physical movement, while electronic types give a signal when contact is made.

4. Is spindle speed important while using this tool?
Yes, low spindle speed is recommended to ensure accuracy and avoid damage.

5. Does using this tool improve machining accuracy?
Yes, it helps set correct zero points and improves overall machining precision.
