Choosing the Right Intumescent Strip for Your Project

Fire safety in building design and construction, intumescent strips play a vital but often overlooked role. These small, unassuming components are essential for maintaining the integrity of fire doors and other fire-resistant structures.

Choosing the right intumescent strip for your project can be the difference between meeting fire safety standards and falling dangerously short. Whether you’re an architect, builder, or property manager, understanding the factors involved in selecting the proper strip is critical.

What Are Intumescent Strips?

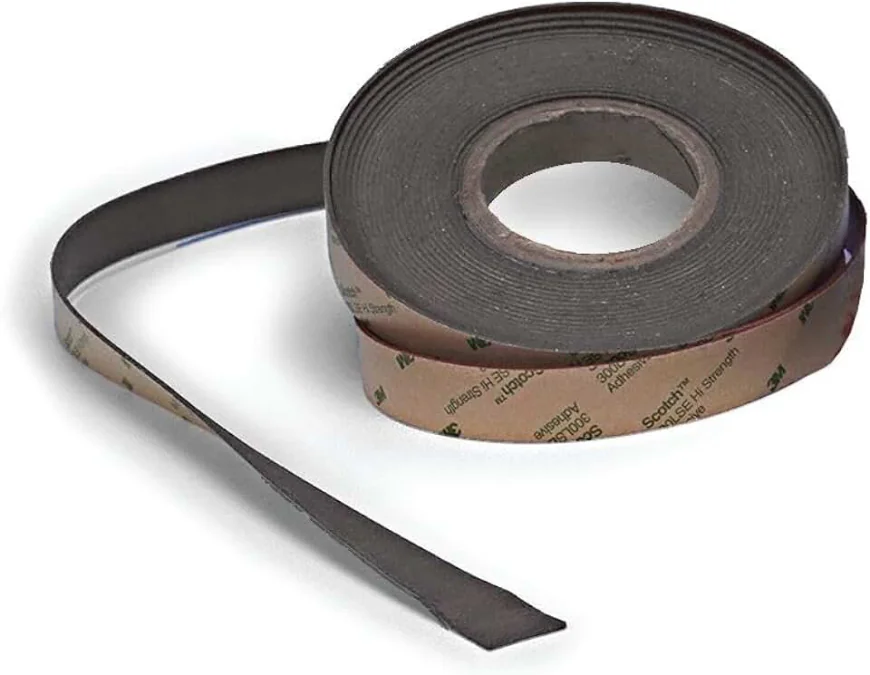

Intumescent strips are materials that expand when exposed to high temperatures, usually during a fire. This expansion helps seal gaps around fire doors or other building elements, preventing the spread of smoke and flames. Typically installed in the frame of a fire door, these strips activate at temperatures around 180°C and can expand up to 20 times their original size.

There are two primary functions of strips:

Smoke control: Some strips include a brush or blade seal that helps contain cold smoke before the intumescent material activates.

Fire containment: Upon reaching a critical temperature, the intumescent material expands, sealing gaps and slowing the passage of fire and heat.

Why Choosing the Right Strip Matters

Not all intumescent strips are created equal. The wrong choice can compromise a building’s fire resistance, potentially endangering lives and leading to non-compliance with fire regulations. Different buildings have different requirements based on usage, materials, and local codes. It’s important to choose the right strip tailored to your specific project to ensure maximum safety and regulatory compliance.

Factors to Consider When Choosing an Intumescent Strip

1. Fire Rating Requirements

The most critical factor is the fire rating of the door or system you're protecting. Fire doors typically come with ratings of 30, 60, 90, or 120 minutes. Your strip must match or exceed the rating of the door.

FD30 Doors: Require strips rated for 30 minutes of protection.

FD60 Doors: Require a higher-performing strip capable of lasting 60 minutes or more.

Always verify with the door manufacturer or building specifications to ensure compatibility.

2. Smoke Sealing Needs

If smoke containment is required, especially in escape routes like corridors and stairwells, choose strips that include cold smoke seals. These often include:

Brush seals: Effective for sealing irregular gaps.

Blade seals: Made from materials like PVC or rubber, offering tighter sealing.

Regulations such as BS 9999 in the UK emphasize smoke control as a key component of fire door performance.

3. Installation Location

Intumescent are typically installed in either the door frame or the edge of the door leaf. Some systems may require additional perimeter sealing. Consider where the strip will be located:

In-frame installation: Common and minimally invasive.

On-leaf installation: May be necessary in retrofit situations or specific door designs.

Ensure the product is suitable for the intended location and that installation won’t interfere with the door’s operation.

4. Material Compatibility

Not all strips adhere equally to all materials. Common substrates include:

·       Wood

·       Metal

·       Glass

·       Composite materials

Some strips come with adhesive backing for easy application, while others require mechanical fixing. Ensure compatibility with both the door and frame materials for optimal performance.

5. Environmental Conditions

Some environments pose additional challenges that can affect strip performance:

Humidity and moisture: Can degrade some materials or adhesives.

Temperature extremes: May impact the long-term durability of certain strips.

Chemical exposure: In industrial settings, certain compounds can corrode or degrade the strip.

Look for strips rated for your specific environmental conditions, especially in hospitals, laboratories, or high-humidity areas.

6. Aesthetic Requirements

While safety is paramount, appearance also matters—especially in commercial or high-end residential settings. Some strips come in a range of colors to match the door or can be painted over without affecting performance. Slimline designs can also provide a more discreet appearance.

7. Regulatory Compliance

Ensure the strip meets all applicable standards in your region:

BS 476-22 and BS EN 1634-1 (UK/EU)

UL 10C or NFPA 252 (USA)

Local building codes or fire safety legislation

Third-party certification (e.g., from Warringtonfire or Certifire) is a good indication of quality and compliance.

Types of Intumescent Strip Materials

Different materials offer varying levels of performance. Common types include:

1. Graphite-Based Strips

Highly responsive, graphite-based strips expand rapidly upon activation. Ideal for high-performance applications where speed and volume of expansion are crucial.

2. Sodium Silicate Strips

Older but still in use, these offer good thermal expansion but may be less flexible and responsive than modern alternatives.

3. Monoammonium Phosphate (MAP) Strips

MAP-based strips provide controlled, consistent expansion and are stable over time, making them suitable for long-term installations.

Each material has its pros and cons depending on the specifics of the project and the desired fire resistance.

Retrofits and Replacements

When upgrading fire doors or replacing degraded seals, it’s critical to choose a product that is both compatible with the existing setup and compliant with current regulations. Always:

Remove old, damaged, or expired strips completely

Check the rebate dimensions (depth and width of the groove)

Use only approved replacement parts, ideally from the door’s original manufacturer or a certified supplier

Improper retrofitting can void fire certification and create hazards.

Working with Professionals

Consulting with fire safety professionals or accredited installers ensures the correct selection and installation of intumescent. They can perform fire risk assessments and recommend compliant systems tailored to your needs. Especially in commercial or high-occupancy buildings, expert advice is essential.

Conclusion

Intumescent strips may seem like minor components, but their role in fire safety is anything but small. Choosing the right one requires careful consideration of fire rating requirements, smoke sealing, environmental factors, installation methods, and compliance standards. By selecting the correct intumescent, you not only ensure regulatory compliance but also significantly enhance the safety of building occupants during a fire emergency.

Investing the time and effort into choosing and installing the right strip is a small step that delivers huge returns in safety, reliability, and peace of mind.
