AWS VPC Architecture Explained: A Practical Guide to Amazon VPC for Beginners

Introduction

When I first started working with AWS, one concept that seemed simple but turned out to be incredibly powerful was Amazon VPC (Virtual Private Cloud). At a glance, it looks like just another networking service, but in reality, it’s the foundation of almost every AWS architecture.

Think of AWS as a massive city. Without proper planning, roads, security, and zoning, everything becomes chaotic. Amazon VPC acts like your private, well-designed city inside AWS, where you control traffic, security, and connectivity.

In this article, I’ll break down AWS VPC architecture in a simple, practical way so you can understand how it works and why it’s critical for modern cloud environments.

What is Amazon VPC?

Amazon VPC is a service that allows you to create a logically isolated network within AWS. Inside this network, you can launch resources such as:

Virtual machines (EC2)
Databases
Application servers

You have complete control over:

IP address ranges
Subnets
Routing
Security rules

In simple terms, Amazon VPC gives you the ability to design your own secure and scalable network in the cloud.

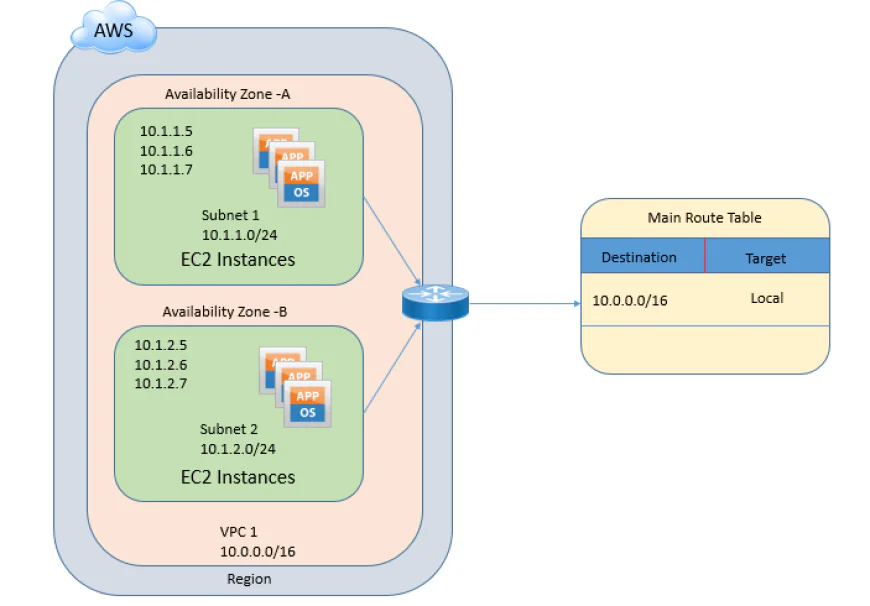

Understanding AWS VPC Architecture

To truly understand AWS VPC architecture, let’s break it down into its key components.

1. VPC (The Foundation Layer)

A VPC is your private network boundary. When you create a VPC, you define a CIDR block (IP range), such as:

10.0.0.0/16

This acts as the address space for all resources inside your network.

2. Subnets (Organizing Your Network)

Subnets divide your VPC into smaller sections. These can be:

Public Subnet → Accessible from the internet
Private Subnet → Isolated from direct internet access

For example:

Web servers → Public subnet
Databases → Private subnet

This separation improves both security and architecture design.

3. Internet Gateway (Connecting to the Internet)

An Internet Gateway (IGW) allows communication between your VPC and the internet.

Without it:

Your resources cannot send or receive external traffic

With it:

Public subnet resources can be accessed from the internet
4. Route Tables (Traffic Control System)

Route tables define how traffic moves inside your VPC.

Example:

Traffic to the internet → via Internet Gateway
Internal traffic → stays within the VPC

Every subnet is associated with a route table, making it a critical part of AWS VPC architecture.

5. NAT Gateway (Secure Outbound Access)

A NAT Gateway allows resources in private subnets to:

Access the internet
Download updates

But prevents:

Incoming internet traffic

This is essential for keeping backend systems secure while still functional.

6. Security Groups & Network ACLs (Security Layers)

AWS VPC provides two levels of security:

Security Groups
Act like a firewall at the instance level
Control inbound and outbound traffic
Network ACLs
Act at the subnet level
Provide an additional security layer

Together, they ensure multi-layered protection for your applications.

How AWS VPC Works in a Real Scenario

Let’s take a simple example of a web application:

Frontend (Web Server) → Public subnet
Backend (Application Server) → Private subnet
Database → Private subnet

Flow:

User accesses the website via the internet
Traffic enters through the Internet Gateway
Web server processes a request
Backend and database communicate internally

This setup ensures:

Public access only where needed
Sensitive components remain protected
Why AWS VPC Architecture is Important
1. Security

You control who can access your resources and how.

2. Isolation

Each VPC is separate, ensuring workloads don’t interfere.

3. Scalability

Easily expand your network as your application grows.

4. Flexibility

Design networks based on your specific use case.

Learning AWS VPC the Right Way

While the concepts are clear, real understanding comes from hands-on practice.

Platforms like Dclessons help learners:

Build VPCs from scratch
Configure subnets and routing
Implement security rules
Test real-world architectures

This practical exposure helps transform theory into real skills, especially for cloud roles and certifications.

Common Mistakes Beginners Make
Incorrect subnet design → Leads to poor architecture
Misconfigured route tables → Causes connectivity issues
Ignoring security layers → Creates vulnerabilities
Confusing public vs private subnets

The best way to avoid these mistakes is through guided labs and repeated practice.

Career Value of AWS VPC Skills

Understanding AWS VPC architecture is essential for roles like:

AWS Solutions Architect
Cloud Engineer
DevOps Engineer
Network Engineer

Since VPC is the backbone of AWS networking, mastering it gives you a strong foundation in cloud computing.

Final Thoughts

Amazon VPC is not just a networking service; it’s the core building block of AWS architecture. Every application, whether small or enterprise-level, depends on a well-designed VPC.

Key takeaway:

VPC defines your network
Subnets organize your resources
Gateways and routes control traffic
Security layers protect your environment

If you want to succeed in AWS, mastering AWS VPC architecture is non-negotiable. Combine theory with hands-on practice, and you’ll gain the confidence to design secure and scalable cloud networks.
