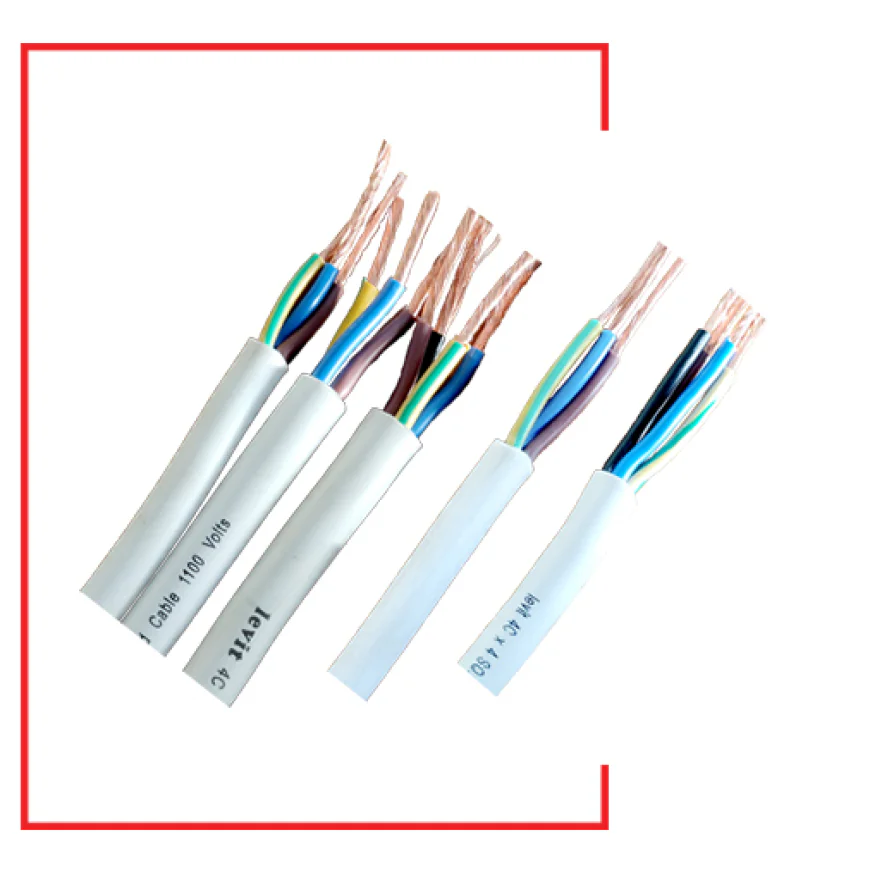

Shielding vs Unshielded: When Flexible Control Cables Need EMI Protection

When sourcing flexible wires for control cables in UAE, one of the most important decisions engineers and project managers face is whether to choose shielded or unshielded designs. This choice directly affects signal integrity, durability, and overall system performance. With industries in the UAE increasingly relying on automation, robotics, and sensitive electronic equipment, understanding when electromagnetic interference (EMI) protection is necessary has become critical.

This article explores the differences between shielded and unshielded flexible control cables, how EMI impacts electrical systems, and the key factors to consider when selecting the right solution for your application.

Understanding EMI in Control Systems

What is Electromagnetic Interference (EMI)?

EMI refers to the disturbance caused when unwanted electromagnetic energy disrupts the normal operation of electrical equipment. In control systems, this interference can come from:

• Motors and variable frequency drives (VFDs)




• High-voltage power lines

• Radio signals and wireless devices

• Industrial equipment producing strong magnetic fields

Why EMI Matters in Flexible Cables

Control cables often transmit signals that govern precise operations in automation and machinery. Without proper shielding, EMI can distort these signals, leading to:

• False triggers or signal errors

• Reduced system reliability

• Equipment malfunctions or downtime

What Are Shielded Flexible Control Cables?

Shielded cables incorporate protective layers around conductors to block electromagnetic interference. Common shielding methods include:

• Foil Shields – A thin aluminum or copper foil wrapped around conductors.

• Braid Shields – Woven copper or tinned copper mesh providing higher coverage and flexibility.

• Combination Shields – A mix of foil and braid for superior EMI protection.

These layers act as a barrier, ensuring that external noise does not affect signal transmission.

Unshielded Flexible Control Cables Explained

Unshielded flexible control cables lack protective shielding layers. Instead, they rely on twisted pair designs or physical separation from noise sources to minimize interference. While more affordable and lighter, they are not suitable for environments with strong EMI.

Key Differences Between Shielded and Unshielded Flexible Cables

When Shielded Flexible Wires Are Necessary

Shielded cables are essential in the following scenarios:

1. High-EMI Industrial Environments

Factories with heavy machinery, VFDs, or large motors generate significant EMI. Shielded cables ensure uninterrupted signal flow in such conditions.

2. Long Cable Runs

The longer the cable, the higher the chance of picking up interference. Shielding reduces noise accumulation over distance.

3. Sensitive Signal Transmission

Applications involving data, sensors, or control signals require shielding to maintain accuracy and prevent false readings.

4. Robotics and Automation

In robotic systems with moving parts and electronic drives, shielded flexible control cables protect against EMI while maintaining performance under constant motion.

When Unshielded Cables Can Work

Unshielded cables are sufficient when:

• The environment has low EMI levels.

• Cable runs are short and well-routed away from interference sources.

• Budget constraints make shielded options less practical.

• The application involves basic control signals with minimal sensitivity.

Factors to Consider When Choosing Shielded vs Unshielded

1. Application Environment

Outdoor or industrial setups usually demand shielding, while indoor low-noise environments may not.

2. Cable Routing

If cables must run parallel to power lines, shielding is highly recommended.

3. Flexibility Requirements

If frequent bending or movement is involved, ensure shielding does not compromise flexibility.

4. Cost vs Performance

While shielded cables cost more, the expense is often justified by reduced downtime and fewer system errors.

5. Compliance with Standards

Look for cables meeting IEC and local safety standards in the UAE to ensure long-term reliability.

Practical Installation Tips

• Ground Shield Properly – Improper grounding reduces shielding effectiveness.

• Avoid Sharp Bends – Excessive bending can damage shield layers.

• Separate Signal and Power Lines – Even shielded cables benefit from physical separation.

• Regular Inspection – Especially for cables in motion, check shielding integrity over time.

Industries in UAE Relying on Shielded Flexible Control Cables

1. Oil & Gas Facilities – EMI from pumps and heavy equipment makes shielding essential.

2. Manufacturing Plants – Automated machinery requires precise signal control.

3. Renewable Energy – Solar inverters and wind turbines generate interference that can affect control signals.

4. Marine and Port Operations – High-power equipment and environmental exposure demand robust shielded solutions.

5. Construction and Infrastructure – Sensitive systems in elevators, HVAC, and building automation rely on shielded designs.

Conclusion

Choosing between shielded and unshielded flexible control cables comes down to understanding your application environment, signal sensitivity, and EMI exposure. In high-noise environments like industrial plants or automation systems, shielding is not optional—it’s essential. On the other hand, unshielded cables remain a practical, cost-effective choice in low-interference settings.

For reliable performance in demanding conditions, working with experienced suppliers is key. Levit Electric is among the trusted providers of flexible wires for control cables in UAE, offering solutions designed to meet local standards, endure the climate, and support critical applications with long-term reliability.
